Machine

Dynamic Bench Router Machine

$0.00

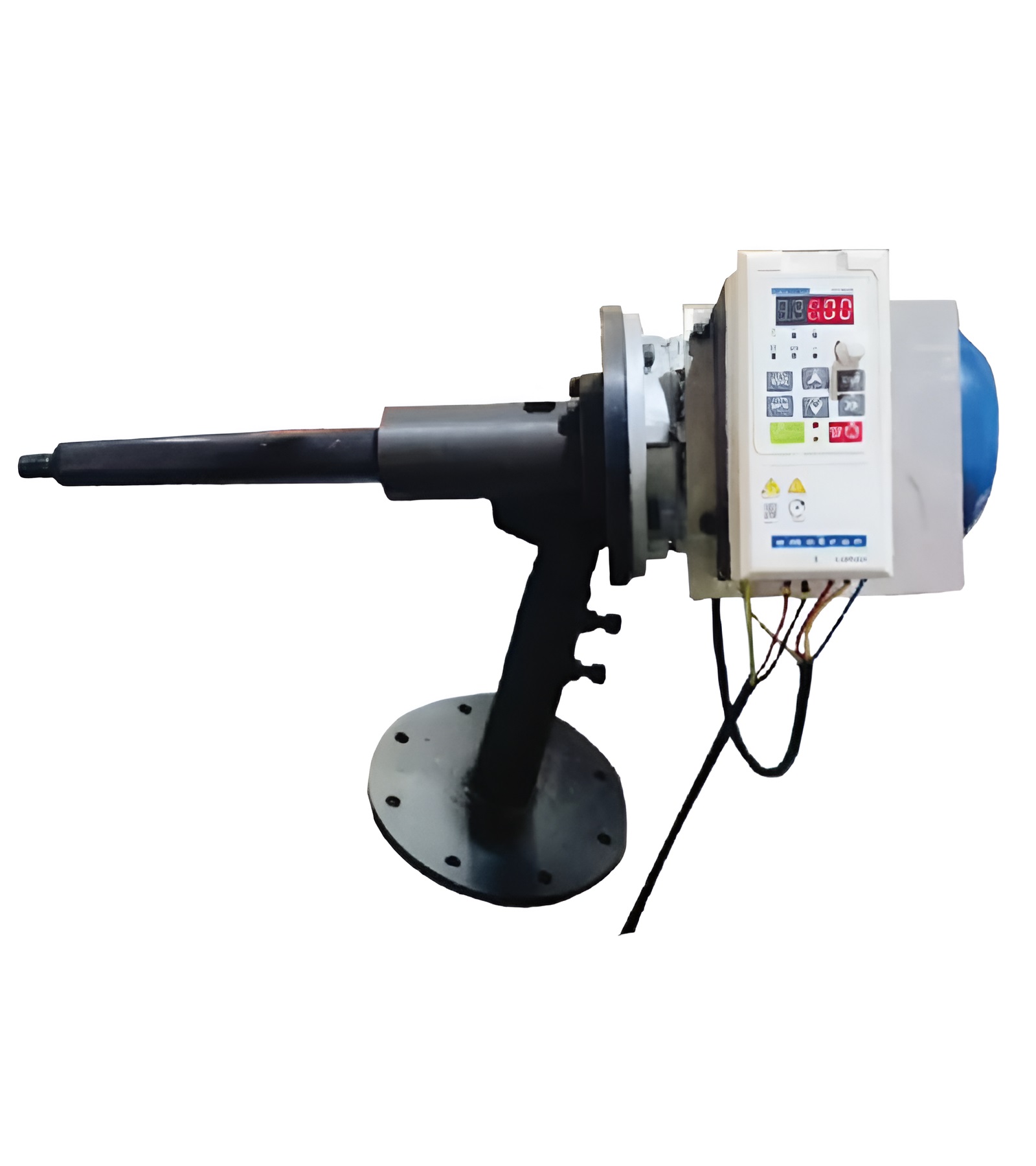

Dynamic Bench Router Machine (LHC5RMC) Table Mounted With Hight and Angle Adjustable.

Warranty – 1 Year on Motor
Servicing & Maintenance – Easy Oiling Servicing At Customer End.

Technical Highlights

Product Code: LHC5RMC

Models: 01-Multispeed System (o to 2880) rpm, 02-Direct Drive 2880 rpm

SKU: LHC5RMC Category:

The Dynamic Bench Router Machine is a compact and versatile prosthetic and orthotic fabrication machine designed for precise socket shaping, modification, and finishing. Featuring adjustable height and angle settings, the machine allows technicians to achieve accurate socket preparation with improved flexibility and control.

Its bench-mounted design saves workshop space while delivering stable performance, making it ideal for prosthetic laboratories, orthotic workshops, rehabilitation centers, and manufacturing facilities.

Technical Highlights

  • Product Code: LHC5RMC
  • Models: 01-Multispeed System (o to 2880) rpm, 02-Direct Drive 2880 rpm

Product Data

Key Features

  • Bench Mounted Compact Design
  • Adjustable Height and Angle System
  • X, Y, and Z Axis Control
  • Multi-Speed VFD Operation
  • Low Noise Performance
  • High Precision Socket Modification
  • Available in Direct Drive and Variable Speed Models
  • Easy Installation and Maintenance
  • Heavy Duty Construction
  • Suitable for Prosthetic & Orthotic Workshops

Technical Specifications

  • X-Axis: Horizontal movement (Left and Right) with fixed positioning.
  • Y-Axis: Vertical movement (Up and Down) adjustable up to 100 mm using a mechanical adjustment system.
  • Z-Axis: Pull-Push adjustment mechanism for accurate socket positioning and shaping.
  • Rotation Adjustment: Positive (+) or Negative (-) Angle Adjustment, Up to 20° Adjustable Rotation, Base Flange Mechanical Adjustment System.
  • Motor Options: 0.5 HP Motor, 1 HP Motor.
  • Speed Control: VFD Controlled Variable Speed (0 – 2880 RPM), Direct Drive 2880 RPM Model Available.

Applications

  • Prosthetic Socket Fabrication
  • Prosthetic Socket Modification
  • Orthotic Device Manufacturing
  • Socket Finishing Operations
  • Alignment Corrections
  • Rehabilitation Workshop Production

Benefits

  • Precise socket shaping and finishing
  • Compact space-saving design
  • Adjustable working position
  • Reduced fabrication time
  • Smooth and quiet operation
  • Reliable workshop performance
  • Easy servicing and maintenance

Available Models

  • Dynamic Bench Router – Multi-Speed Model: Variable speed operation from 0–2880 RPM for enhanced control and precision.
  • Dynamic Bench Router – Direct Drive Model: Constant 2880 RPM speed for high-production workshop environments.

Installation

  • The machine is designed for simple customer-end installation and can be assembled using the provided installation manual.

Servicing & Maintenance

  • Easy oiling system
  • Low maintenance requirements
  • User-friendly servicing
  • Long operational life

Warranty

  • 1 Year Motor Warranty

Why Choose Lives Health Care

  • Lives Health Care manufactures advanced prosthetic and orthotic workshop machinery engineered for precision, durability, and productivity. Our fabrication equipment is trusted by rehabilitation centers, prosthetic manufacturers, and P&O professionals worldwide.

FAQ (Frequently Asked Questions)

The machine is used for prosthetic socket shaping, modification, trimming, and finishing applications.
The machine operates up to 2880 RPM depending on the selected model.
Yes. The Y-axis allows up to 100 mm vertical adjustment.
Yes. The machine supports positive and negative angle adjustments up to 20 degrees.
Yes. It is specifically designed for prosthetic and orthotic fabrication facilities.
The machine is available with 0.5 HP and 1 HP motor configurations.
Yes. The VFD model provides variable speed control from 0 to 2880 RPM.
Yes. The bench-mounted design allows quick installation at the customer site.
Lives Health Care offers a 1-Year Motor Warranty.
Lives Health Care supplies professional prosthetic and orthotic workshop machines worldwide.
