Above Knee Kit With Single Axis Weight Activated Brake Knee Joint

An advanced above-knee kit featuring a weight-activated braking knee joint for specialized stance safety.

Technical Highlights

Product Code: LHC-010AK

Material: SS + AI Pylon

Load Capacity: 80kg-110kg

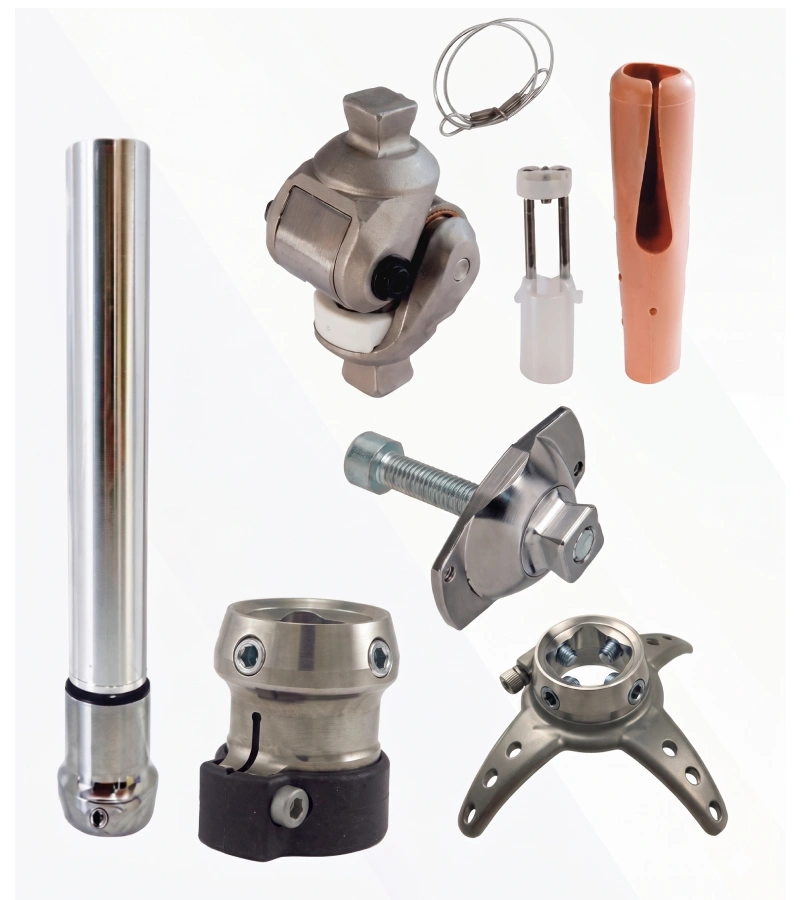

Included Components: 1-LS-04KJ(JOINT), 2-Adapter To Clamp The Tube, 3-Three Pronge Socket Adapter, 4-Pylon With Adapter (400mm), 5-Foot Adapter

SKU: LHC-010AK Category: Tags: , , ,

The LHC-010AK Above Knee Kit provides enhanced safety for users through its single-axis weight-activated brake knee joint. This mechanism automatically engages an internal brake when weight is applied during the early stance phase, preventing the knee from flexing involuntarily. This feature offers a significant safety net for geriatric users or new amputees who are prone to balance issues during early rehabilitation.

The kit is built with a 400mm Aluminium pylon and high-grade Stainless Steel adapters, ensuring long-term durability and resistance to dynamic forces. The brake sensitivity can be adjusted to match the user’s weight and activity level, providing a personalized level of security. With a 110kg load rating, this kit combines specialized mechanical stability with a lightweight modular design for confident and secure daily mobility.

Technical Highlights

  • Product Code: LHC-010AK
  • Material: SS + AI Pylon
  • Load Capacity: 80kg-110kg
  • Included Components: 1-LS-04KJ(JOINT), 2-Adapter To Clamp The Tube, 3-Three Pronge Socket Adapter, 4-Pylon With Adapter (400mm), 5-Foot Adapter

Product Data

Product Code LHC-010AK
Material SS + AI Pylon
Load Weight 80kg-110kg
Components Included 1-LS-04KJ(JOINT), 2-Adapter To Clamp The Tube, 3-Three Pronge Socket Adapter, 4-Pylon With Adapter (400mm), 5-Foot Adapter

Download Brochure

Download

FAQ (Frequently Asked Questions)

This kit is specifically designed for above-knee amputees who require weight-activated safety during their daily activities.
Yes, the 400mm Aluminium pylon is designed to be professionally cut to the exact height needed by your prosthetist during the final assembly.
The modular adapters in this kit are made from high-strength Stainless Steel (SS) to ensure long-term durability and structural integrity under dynamic load.
Yes, the included foot adapter uses the universal modular pyramidal interface, making it compatible with most industry-standard prosthetic feet.
